You’ve done everything right. The materials are top-grade, the layup is precise, and the lamination cycle runs flawlessly. The module emerges from the laminator looking perfect—a pristine sheet of high-tech glass and silicon. But as it cools, something goes wrong. A subtle curve appears. The edges lift. What was a perfectly flat panel is now a warped, bowed sheet destined to fail quality control.
This frustrating scenario is becoming all too common for manufacturers working with advanced bifacial modules, especially glass-glass TOPCon designs. The culprit isn’t a faulty machine or a bad material batch, but an invisible force locked within the module itself: internal stress. And the key to controlling it lies not in the heating phase of lamination, but in the often-overlooked cooling cycle.
The Unseen Enemy: Internal Stress in Bifacial Modules
Think of a solar module not as a single object, but as a composite sandwich of different materials. You have glass, encapsulant (like EVA or POE), solar cells, and interconnectors, all bonded together under heat and pressure.
Each of these materials expands and contracts at its own unique rate when heated and cooled—a property called the Coefficient of Thermal Expansion (CTE). When these materials are bonded together at high temperatures and then cooled, they all want to shrink back to their original size at their own pace. But since they are stuck to each other, they can’t. This creates a microscopic tug-of-war inside the module, generating internal stress.
When these stresses become uneven or excessive, they manifest as visible defects like bowing and warpage. This isn’t just a cosmetic issue; it can lead to cell microcracks, delamination, and long-term reliability failures in the field.
What is CTE Mismatch and Why Does It Matter?
The core of the warpage problem is CTE mismatch. Imagine two bonded metal strips, one brass and one steel. As they heat up, the brass expands more than the steel; as they cool, it shrinks more. This difference forces the bonded strip to bend. This is exactly what happens inside a solar module.
Here’s how the materials stack up:
- Glass: Has a relatively low CTE. It doesn’t expand or contract much.
- Encapsulant (EVA/POE): Has a much higher CTE. It wants to shrink significantly as it cools.
- Backsheet (for Glass-Foil): Also has its own CTE, which differs from the front glass and encapsulant.
In a glass-glass bifacial module, two sheets of glass constrain a high-CTE encapsulant layer. As the module cools from the lamination temperature (around 150°C) down to room temperature, the encapsulant tries to shrink much more than the glass. This powerful contraction pulls the glass inward, causing the entire structure to bow. Truly understanding how these specific material combinations will behave under real production conditions requires detailed lamination trials.
TOPCon and Glass-Glass: A Perfect Storm for Warpage?
While warpage can affect any module, the shift toward glass-glass TOPCon and HJT designs has amplified the challenge. Here’s why:
- Thinner Glass: To reduce weight and cost, many designs now use 2.0mm or even thinner glass. Thinner glass is less rigid and more susceptible to being pulled out of shape by the forces from the cooling encapsulant.
- High-Performance Encapsulants: Polyolefin elastomers (POE) are often used in these modules for their superior performance. However, POE can have a different CTE and curing behavior than traditional EVA, requiring a re-evaluation of the entire lamination process.
- Higher Process Sensitivity: TOPCon cells can be more sensitive to mechanical stress than their PERC predecessors. Excessive bowing doesn’t just affect the module’s shape; it can induce stress that leads to hidden cell damage.
The most critical moment in this entire process is when the module cools through the encapsulant’s “glass transition temperature” (Tg). This is the point where the polymer changes from a soft, rubbery state to a hard, glassy one. Any stresses present in the module as it crosses this threshold are locked in permanently. Cool the module too quickly or unevenly through this phase, and high stresses—and subsequent warpage—are almost guaranteed.
Solving Warpage: The Art and Science of the Cooling Profile
The common instinct is to blame the heating cycle, but the solution to warpage is almost always found in the cooling cycle. While you cannot eliminate the inherent CTE mismatch, you can manage the resulting internal stresses by controlling the rate and uniformity of cooling inside the laminator.
This level of control is where advanced process optimization becomes critical. Instead of a single, rapid cooling phase, a carefully engineered cooling profile introduces specific steps or ramps that allow internal stresses to relax and equalize before they get permanently locked in.
Modeling and Testing Cooling Rates
A modern laminator allows for precise control over the cooling process. By programming different temperature steps and hold times, engineers can create a cooling „recipe“ tailored to a specific module design and material set.

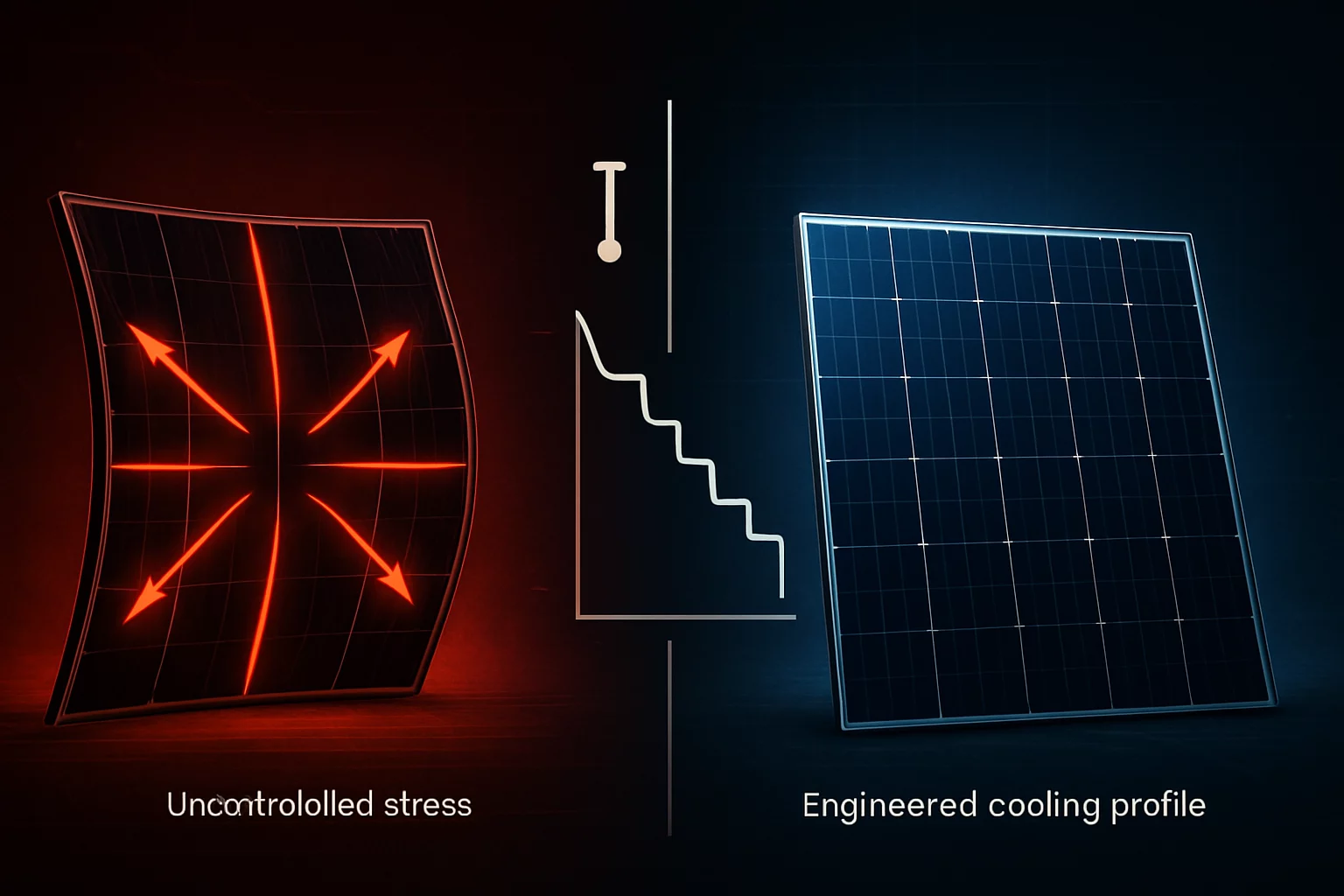

For example, a stepped cooling profile might look like this:
- Initial Rapid Cool: Quickly bring the temperature down from the lamination peak to just above the encapsulant’s Tg.
- Stress Relaxation Hold: Hold the temperature steady at this point, keeping the encapsulant in its soft, rubbery state. This allows the mechanical stresses that built up during the initial cooling to dissipate.
- Final Controlled Cool: Slowly and uniformly cool the module through the Tg and down to room temperature, locking it into a low-stress, flat state.
The ideal profile depends on the module’s bill of materials—the type of encapsulant, the thickness of the glass, and the overall module size. Finding the perfect recipe requires systematic experimentation in a controlled, industrial-scale environment.
„Many manufacturers focus intensely on the heating and curing phase, but they treat cooling as a simple, passive step. In reality, the cooling profile is your most powerful tool for controlling planarity in glass-glass modules. We’ve seen modules go from a 10mm bow to less than 1mm simply by engineering the last 15 minutes of the laminator cycle. It requires data, precision, and an understanding of polymer science.“ — Patrick Thoma, PV Process Specialist
From Theory to a Flat Module
At PVTestLab, we use our full-scale R&D production line to model, test, and validate these cooling profiles. By running structured experiments, we can measure the direct impact of different cooling rates and hold times on module warpage. This data-driven approach takes the guesswork out of the equation, providing manufacturers with a proven process recipe they can implement on their own production lines.
The result is a consistently flat, stable, and reliable module, ready for framing and shipping, without the costly waste and delays caused by warpage.
Frequently Asked Questions (FAQ)
What exactly is module warpage or bowing?
Warpage, or bowing, is the deviation of a solar module from a perfectly flat plane. It’s typically measured as the maximum distance between the module’s surface and a straight edge placed across its length or width. Industry standards often specify maximum allowable warpage to ensure proper mounting and system integration.
Can’t you just fix a warped module by bending it back?
No. The stresses causing the warpage are locked into the material structure of the module at a molecular level. Attempting to mechanically flatten a warped module is extremely risky and will likely cause invisible microcracks in the solar cells, leading to severe performance degradation and eventual field failure. The solution must be preventative, not corrective.
Does the type of encapsulant (EVA vs. POE) affect warpage?
Absolutely. EVA and POE have different Coefficients of Thermal Expansion (CTE), glass transition temperatures (Tg), and curing characteristics. A process optimized for an EVA-based module will almost certainly not work for a module using POE. Each combination of glass, cell, and encapsulant requires its own tailored lamination recipe, especially the cooling profile.
Is this only a problem for glass-glass modules?
While the effect is most pronounced in glass-glass modules due to the symmetrical, rigid constraints, warpage can also occur in glass-backsheet modules. The CTE mismatch between the front glass, encapsulant, and polymer backsheet can still create enough internal stress to cause bowing, especially in larger format modules.
From Lab-Scale Testing to Full-Scale Success
Controlling module warpage is no longer a matter of trial and error. It’s a science of process engineering that balances material properties with thermal dynamics. By focusing on the cooling cycle, manufacturers can turn a major production headache into a competitive advantage, delivering flatter, more reliable, and higher-quality modules.
The key is to bridge the gap between material data sheets and the reality of a full-scale production line. Perfecting this process typically begins with dedicated solar module prototyping to create and validate new designs. By testing your specific bill of materials in a real industrial environment, you can develop a robust, optimized process that ensures every module you produce is as perfect as the first.
