You’ve done everything by the book: carefully binned and sorted your solar cells, ensuring each one in the string has a nearly identical current output. You’ve built a module that, on paper, should perform flawlessly. Yet, when you put it to the test, the power output is disappointingly low. The numbers just don’t add up.
It’s a frustratingly common scenario in solar module development. The culprit is often a hidden thief—an invisible flaw that standard sorting processes completely miss. While we’ve spent years focusing on differences between cells, the real problem is often hiding within a single cell. This phenomenon, known as intra-cell mismatch, directly attacks one of the most critical performance metrics: the Fill Factor.
Beyond the Basics: From Cell-to-Cell to Intra-Cell Mismatch
For years, the solar industry has focused on minimizing cell-to-cell mismatch. The concept is simple: in a string of cells connected in series, the entire string is limited by the output of the lowest-performing cell. It’s the classic „a chain is only as strong as its weakest link“ problem.
But what if the weak link isn’t the entire cell, but just a part of it?
This is the essence of intra-cell mismatch. Imagine a rowing team where every athlete is equally strong. That’s a perfectly matched string of cells. Now, imagine one of those athletes has an injured arm—they can still row, but not at full capacity. Their inefficiency drags down the entire boat’s speed.
Intra-cell mismatch works the same way. A single solar cell might have areas that are underperforming due to microscopic defects, uneven material application, or printing errors. These „slacker“ regions don’t produce as much current as the healthy parts, creating an internal imbalance that silently steals power from the entire module.
Seeing the Invisible: How High-Resolution Electroluminescence (EL) Works
You can’t see intra-cell mismatch with the naked eye. To find this hidden thief, you need a special diagnostic tool: high-resolution Electroluminescence (EL) imaging.
Think of an EL test as an X-ray for a solar cell. Passing a small current through the cell causes it to light up, or „luminesce.“ The light it emits is captured by a sensitive camera, creating an image that reveals its internal health.
A healthy cell will glow uniformly bright, indicating that current is generated and collected evenly across its entire surface. In contrast, a cell with intra-cell mismatch will show dark or patchy areas. These dark spots are the underperforming regions—the parts of the cell struggling to do their job.
The high-resolution EL image below shows a cell suffering from significant non-uniformity. The darker vertical bands are areas with poor electrical contact, effectively acting as dead zones.
These dark bands are not just cosmetic flaws; they are direct visual evidence of a problem with a measurable impact on the cell’s electrical performance. Here, the visual evidence connects directly to the hard data.
The Telltale Sign: Connecting EL Non-Uniformity to Fill Factor
When we see patchiness in an EL image, the first place we look on the datasheet is the Fill Factor (FF), a single parameter that reveals more about a cell’s internal quality than almost any other metric.
What is Fill Factor (FF), Really?
Imagine a graph of a solar cell’s performance that plots its current (I) against its voltage (V). This creates an I-V curve, and the maximum power a cell can produce (Pmax) is found at the „knee“ of this curve.
The Fill Factor is a measure of how „square“ that knee is. A perfect, theoretical cell would have a perfectly square I-V curve and a Fill Factor of 100%. In reality, a high-quality cell might have a Fill Factor of 80-84%.
A low Fill Factor means the curve is more rounded, indicating that the cell is losing energy internally. It’s a clear signal of inefficiency and poor internal health.
The Direct Correlation
The dark, underperforming areas revealed by high-resolution EL act like tiny pockets of resistance within the cell. They impede the flow of electrons, generating heat and wasting energy that should be converted into electricity.
This internal power dissipation rounds off the knee of the I-V curve, crushing the Fill Factor. Research from leading institutions has established a direct link: the more non-uniform the EL image, the lower the Fill Factor. Data shows that a significant increase in the standard deviation of EL intensity across a cell can correlate to a Fill Factor reduction of 2-3% absolute—a massive loss in the competitive solar market.

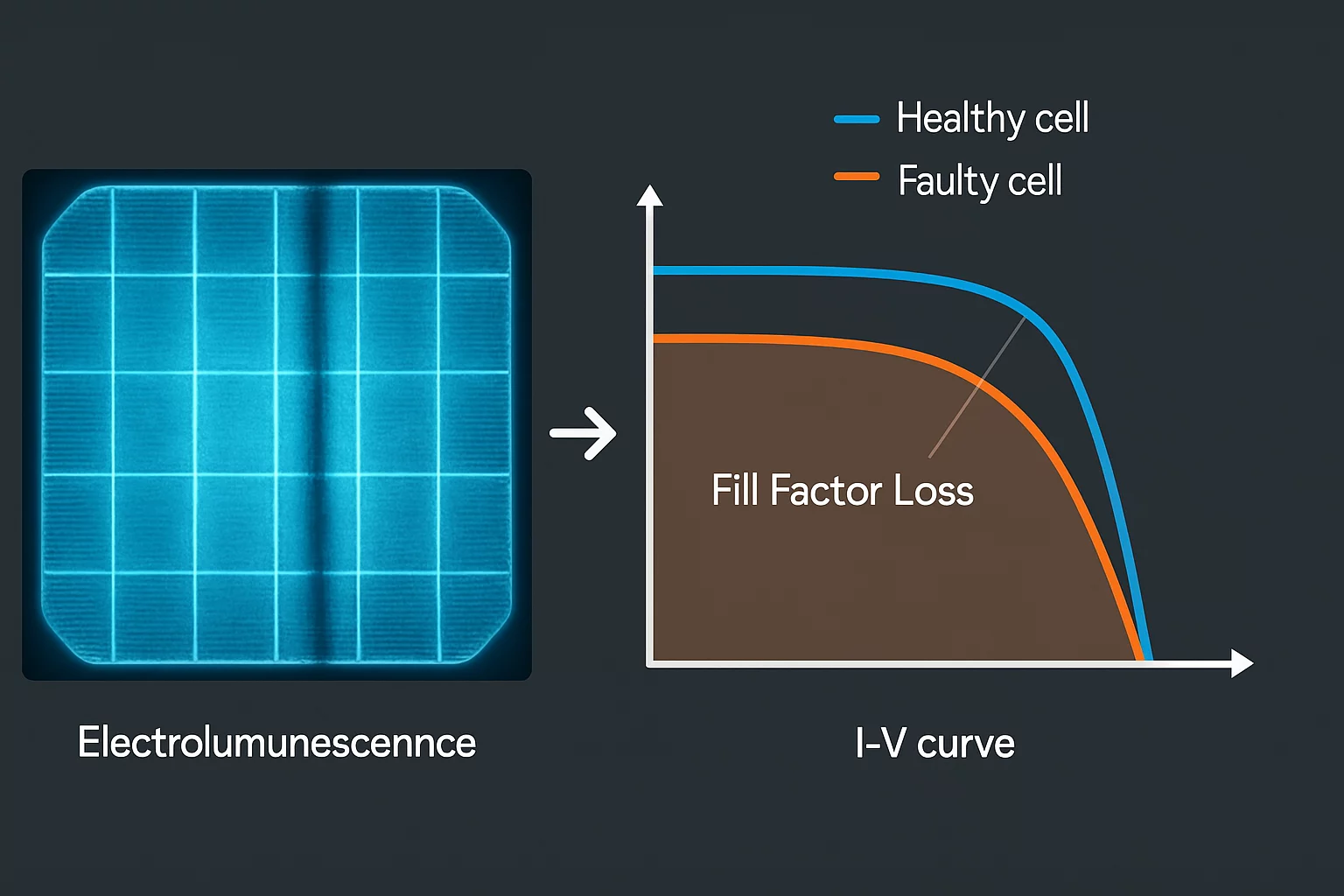

The graph below illustrates how this plays out. The blue curve represents a healthy cell with a high Fill Factor. The orange curve shows a cell with intra-cell defects; even if its maximum current (Isc) and voltage (Voc) are similar, its rounded knee and lower Fill Factor result in a significantly smaller maximum power point (Pmax).
For many module developers, this direct, quantifiable link between a visual defect and a critical performance metric is the „aha moment.“ The problem is no longer an abstract concept but a measurable loss that can be traced to a physical root cause.
What Causes These Internal Flaws?
Intra-cell mismatch isn’t random. It’s typically caused by subtle imperfections in the manufacturing process or the raw materials themselves. Identifying these root causes is the first step toward a solution. Common culprits include:
- Inconsistent Screen Printing: Uneven application of the silver paste used to create the metal contact fingers can lead to areas of high resistance.
- Metallization Paste Quality: Variations in the paste’s composition can affect its ability to form a good electrical contact with the silicon.
- Emitter Defects: Non-uniformity in the cell’s emitter layer can hinder charge separation and collection.
- Microcracks: Tiny, invisible cracks in the silicon wafer create dead zones that produce no current.
Because these issues often stem from how materials behave under industrial conditions, rigorous material testing & lamination trials are essential for validating new suppliers or qualifying new pastes and foils.
Why This Matters for Your Next Project
Ignoring intra-cell mismatch is like building a high-performance engine with leaky fuel lines. No matter how good the core components are, you’ll never achieve the expected output.
- For Module Developers: A low Fill Factor directly impacts your module’s wattage and efficiency rating. Failing to diagnose this issue early can mean missing performance targets and harming your bankability and brand reputation. Proving a design is robust requires building and validating modules under real conditions—a core part of the prototyping & module development process.
- For Material Suppliers: Your customers rely on the consistency of your products—whether silicon wafers, metallization pastes, or conductive adhesives. Using high-resolution EL can prove the uniformity of your materials and give your customers confidence.
- For Equipment Manufacturers: Understanding how your printing, handling, or stringing equipment affects cell integrity is crucial for demonstrating value and helping your customers optimize their production lines.
The bottom line is that in today’s market, just matching cells is no longer enough. True quality control requires looking deeper.
Frequently Asked Questions (FAQ)
What is the difference between electroluminescence (EL) and photoluminescence (PL)?
EL uses an electrical current to make the cell emit light, simulating its operational state. PL uses an external light source (like a laser) to excite the silicon, making it glow. EL is generally better for detecting issues related to electrical contacts and resistance, which are directly tied to Fill Factor.
Can intra-cell mismatch be fixed after a module is laminated?
No. Once the module is laminated, any defects within the cell are sealed in permanently. This is why front-end diagnostics are so critical. The only remedy is to prevent the flawed cell from ever being included in the module.
How much power loss from a poor Fill Factor is considered significant?
A drop of just 1% absolute in Fill Factor can lead to a power loss of 5-6 watts on a typical 550W module. In a utility-scale solar farm, this small percentage translates into millions of dollars in lost revenue over the project’s lifetime.
Is this issue more common in specific cell technologies like PERC, TOPCon, or HJT?
While the root causes may differ, all cell technologies are susceptible to intra-cell mismatch. Newer technologies like TOPCon and HJT have more complex manufacturing steps, which can introduce new potential sources of non-uniformity. Rigorous process validation is essential for all of them.
The Path to Better Performance Starts with Better Diagnostics
The drive for higher solar module efficiency has pushed the industry to optimize every component. But the gains from new cell technologies can be easily erased by hidden losses that go undiagnosed. Intra-cell mismatch is one of the most significant of these hidden thieves.
By moving beyond basic cell sorting and embracing advanced diagnostics like high-resolution EL, we can finally see the whole picture. We can connect the visual evidence of non-uniformity directly to a measurable drop in Fill Factor and, ultimately, to lost power.
Understanding and controlling these internal cell dynamics is the next frontier in quality assurance. It requires a deep knowledge of process engineering and a testing environment that can replicate industrial conditions with scientific precision. By focusing on the health within each cell, we can build more powerful, reliable, and profitable solar modules for the future. Discover the experts and engineering discipline behind these insights by learning the story of our team and mission.
