Imagine you’ve baked a large sheet cake, but your oven has invisible hot and cold spots. The edges are perfectly cooked, the center is a bit gooey, and one corner is slightly burnt. While it might look fine on the surface, the cake’s internal structure is inconsistent. Something surprisingly similar happens inside a solar module laminator every day.
While we strive for perfect uniformity, the reality of industrial manufacturing is that temperature is never perfectly even across a large heating plate. These subtle variations, or thermal gradients, are a hidden variable that can silently undermine the long-term reliability of a solar module.
But what if you could create a map of these hot and cold spots to predict exactly how your chosen materials would perform? What if you could benchmark their resilience before they go into mass production? This is the shift from reactive problem-solving to predictive quality assurance.
Why a Few Degrees Make a World of Difference
The lamination process is the critical step where all the layers of a solar module—glass, encapsulant, solar cells, and backsheet—are fused together under heat and pressure into a single, durable unit. The goal is to achieve a strong, uniform bond that can withstand decades of harsh weather. The key to this bond is adhesion.
Adhesion is simply how well the layers stick together. Poor adhesion can lead to delamination, moisture ingress, and ultimately, module failure. The industry has standards for this, often measured by peel strength—literally, how much force it takes to pull the layers apart.
Here’s the challenge: the data sheets for your backsheet and encapsulant promise excellent performance, but they assume a perfect, uniform curing temperature—an ideal our research shows is rarely the case. The data reveals temperature deltas of up to 7°C across a single lamination plate. A few degrees might not sound like much, but it’s more than enough to create weak spots in the final product.

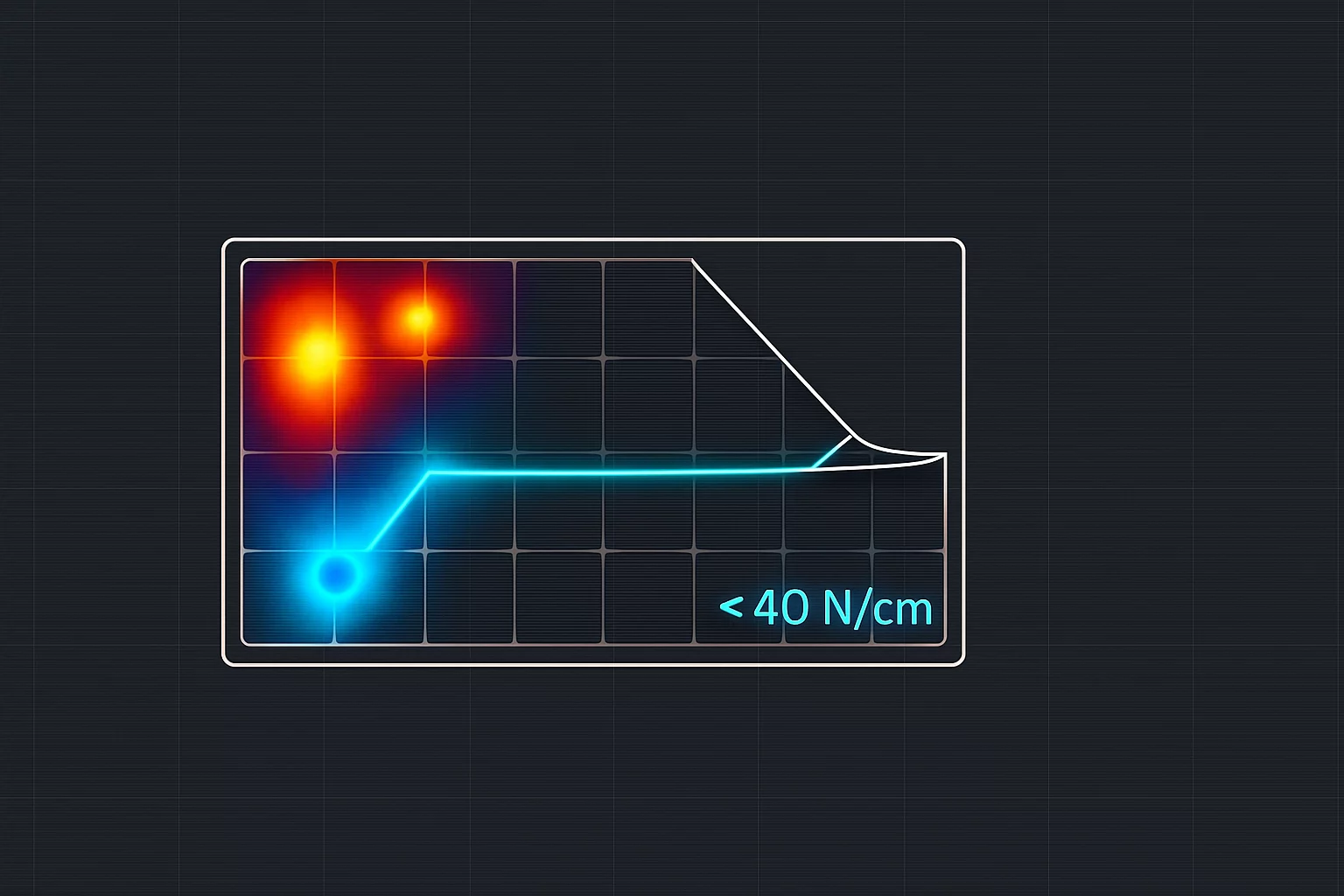

These cooler zones can prevent the encapsulant from fully cross-linking, compromising its bond with the backsheet. In fact, our findings are stark: a 5°C drop in effective curing temperature can cause peel strength to fall below the critical 40 N/cm threshold for certain encapsulant/backsheet combinations. This is the invisible flaw that can lead to a warranty claim years down the road.
From Guesswork to a Predictive Benchmark: The Adhesion Stability Index
How can you know which materials will hold up best against these inevitable temperature fluctuations? Trusting a spec sheet alone is like navigating without a map. You need a way to correlate the cause (temperature variation) with the effect (adhesion strength).
This is why we developed the Lamination Adhesion Stability Index. It’s a data-driven approach that moves beyond ideal lab conditions to reflect the realities of industrial production.
Here’s how it works:
Step 1: Map the Thermal Reality
First, we use an array of thermal sensors to create a detailed, high-resolution temperature map of the laminator during a standard production cycle. This gives us a clear picture of the hot and cold zones—the machine’s „thermal fingerprint.“
Step 2: Produce and Test Under Real Conditions
Next, we produce a series of test modules using different backsheets (like TPT and KPF) while keeping all other parameters the same. These modules are laminated on the very machine we just mapped, capturing the real-world thermal variations.
Step 3: Measure the Physical Bond
After lamination, we conduct systematic peel strength tests across the surface of each module. We measure the force required to separate the backsheet from the encapsulant at specific coordinates that correspond to our thermal map.
Step 4: Correlate the Data and Create the Index
This is the „aha moment.“ We overlay the peel strength data with the thermal map, and suddenly, the invisible becomes visible. We can see precisely how adhesion weakens in the cooler zones and holds strong in the hotter ones.
By analyzing these correlations, we generate the Lamination Adhesion Stability Index. This metric scores materials on a 100-point scale, where a higher score indicates better resilience to process temperature variations. A material that maintains high peel strength even in the laminator’s 7°C cooler spots will score much higher than one that fails.
This index provides a powerful tool for choosing the right solar module materials based on their real-world process tolerance, not just their ideal-condition specs.
What This Means for You: Actionable Insights from the Index
This predictive benchmarking isn’t just an academic exercise; it offers clear, actionable insights for anyone involved in solar manufacturing.
- For Material Manufacturers: You can definitively prove your product’s process window is wider than a competitor’s. For instance, our tests showed that TPT (Tedlar-PET-Tedlar) backsheets exhibited greater adhesion stability across thermal gradients compared to some KPF (PVDF-PET-Primer) variants. This kind of data is invaluable for R&D and marketing.
- For Module Developers: You can de-risk your bill of materials (BOM). Selecting a backsheet with a high Stability Index builds in a buffer against routine process variations, leading to a more reliable product. This is a critical step when prototyping new solar module designs.
- For Process Engineers: You can fine-tune your operations with confidence. Knowing a material is sensitive to temperature drops allows you to adjust cycle times or temperature setpoints. This is the foundation of effective process optimization for solar manufacturing. Our data showed that certain backsheets lose 15-20% of their peel strength in lower-temperature zones—an issue a slightly longer curing time could potentially mitigate.
Ultimately, understanding how materials behave in the real world—not just in the lab—is the key to building solar modules that not only perform well on day one but also stand the test of time.
Frequently Asked Questions (FAQ)
What is a peel strength test?
A peel strength test is a physical measurement of the adhesive bond between two layers. For solar modules, it typically involves cutting a strip of the backsheet and pulling it from the encapsulant at a 90- or 180-degree angle using a specialized machine. The machine records the force (measured in Newtons per centimeter, or N/cm) required to separate the layers. A higher value indicates a stronger bond.
What are TPT and KPF backsheets?
TPT and KPF are common types of multi-layer polymer backsheets used to protect the rear side of a solar module.
- TPT stands for Tedlar-PET-Tedlar. Tedlar (a brand name for PVF film) is known for its excellent UV and weather resistance.
- KPF typically refers to a structure of PVDF-PET-Primer. PVDF is another highly durable fluoropolymer.While both serve the same function, their chemical composition and manufacturing can lead to different performance characteristics, especially in how they bond with encapsulants under varying process conditions.
Why can’t I just use the temperature setpoint on my laminator?
The setpoint is the target temperature, but it doesn’t reflect the actual temperature across the entire heating surface. Factors like insulation, heater element age, and even the flow of cooling fluids can create persistent hot and cold spots. The only way to know your laminator’s true thermal profile is to measure it directly with multiple sensors.
How often should a laminator’s thermal profile be checked?
For critical production, it’s good practice to map the thermal profile quarterly or semi-annually, as well as after any major maintenance on the heating or cooling systems. This ensures your process control is based on current, accurate data.
Your Next Step in Building Better Modules
The gap between a material’s data sheet and its real-world performance is where risk and opportunity live. By embracing a data-driven approach like predictive adhesion benchmarking, you can minimize that risk and build more robust, reliable, and profitable solar products.
The first step is to stop guessing and start measuring. Understanding the unique thermal fingerprint of your own equipment is the foundation for a more resilient manufacturing process.
Ready to learn more about optimizing your production process? Explore our in-depth guides on material testing and process validation.
