Imagine this: your team has just designed a beautiful, large-format glass-to-glass (G2G) solar module. It’s thinner, lighter, and more efficient. But when the first prototypes emerge from the laminator, you notice subtle, disastrous flaws—cells are slightly misaligned, and there are signs of hidden internal stress. What went wrong? The culprit is likely something you barely considered: how the invisible forces of gravity and heat were controlled during the crucial opening moments of lamination.
Research shows that for a large module (2.5m x 1.4m) using thin 1.6mm glass, gravity alone can cause the center to sag more than 3 millimeters before lamination pressure is even applied. This tiny deviation is enough to create non-uniform cell spacing, compromise encapsulation, and sow the seeds of future delamination.
It’s a frustrating problem because it happens before the main lamination pressure is even applied. But what if the support system inside your laminator could do more than just hold the module? What if it could actively counteract these forces? That’s the science behind advanced PIN lift control—a foundational protocol we’ve perfected at PVTestLab.
The Unseen Battle: Gravity vs. Thermal Expansion
To understand the solution, we first need a clear picture of the two main challenges every large-format module faces inside a laminator.

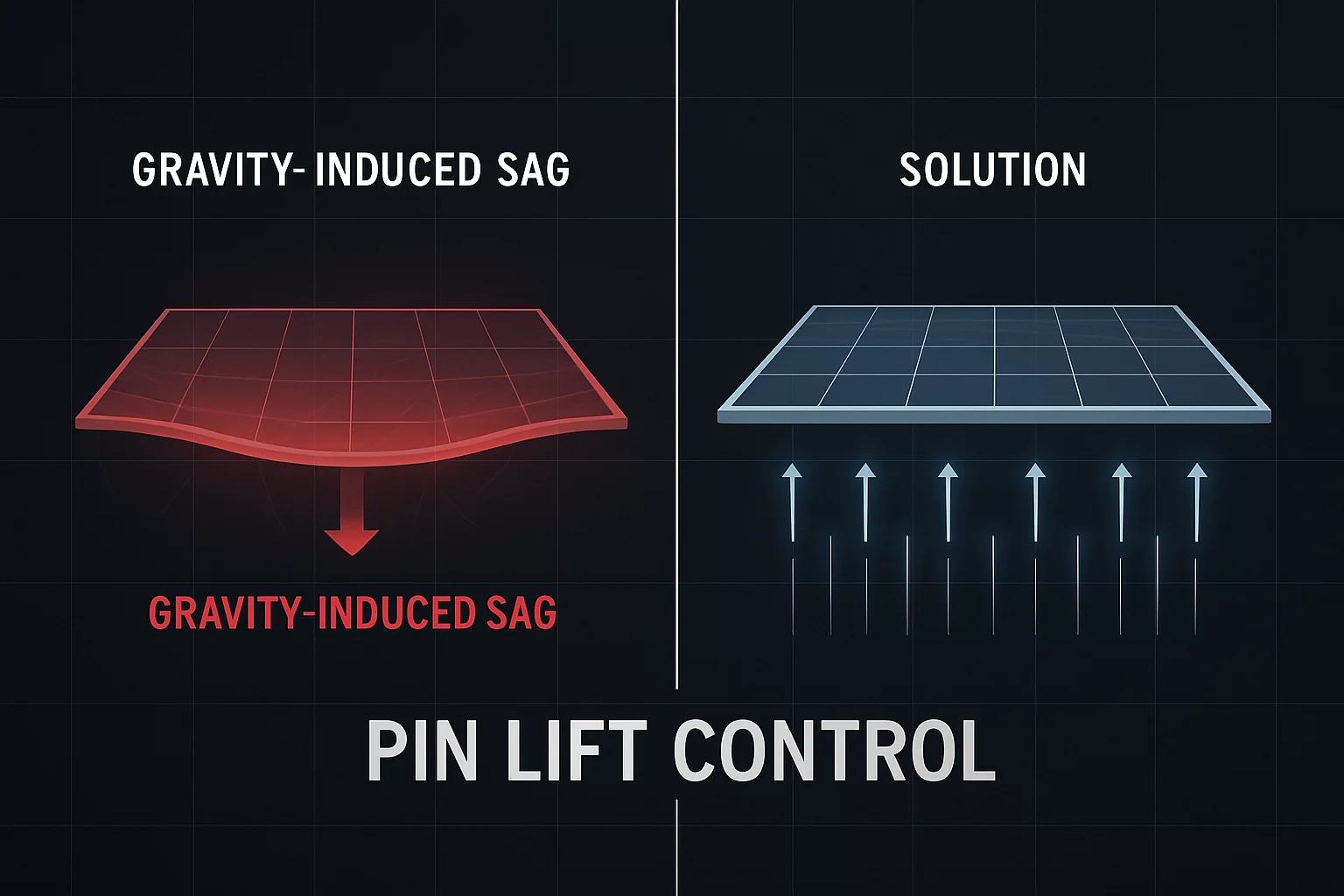

First, there’s gravity-induced sag. Think of holding a large, thin sheet of uncooked pasta by its edges. The middle naturally droops. A solar module „sandwich“ of glass, encapsulant, and cells behaves the same way when supported only by its perimeter. This sag isn’t uniform; it creates a bowl shape that can lock in stress and shift delicate components.
The second challenge is thermal expansion. As the module heats up to its lamination temperature of around 150°C, every material expands. Glass, silicon cells, and polymer encapsulants all expand at different rates. If the module is held rigidly in place, this expansion has nowhere to go, building powerful internal stresses that can lead to microcracks—tiny fractures in the solar cells that are invisible to the naked eye but devastating to long-term performance and durability.
Beyond Simple Support: What is a PIN Lift System?
To combat sag, industrial laminators are equipped with a PIN lift system. These are arrays of retractable metal pins that rise from the bottom plate, supporting the module’s entire surface before the lamination cycle begins.
In a basic setup, these pins simply lift the module, hold it, and then retract. It’s a passive support system—but for the demanding requirements of modern thin-glass and bifacial modules, „basic“ isn’t good enough. The secret to perfect flatness and zero-stress lamination lies in transforming this passive system into an active, intelligent control mechanism.
The PVTestLab Protocol: Turning PINs into an Active Control System
Through countless lamination process trials, our engineers have developed a three-phase protocol for programming the PIN lift sequence. It’s not just about if the pins are up or down; it’s about their height, timing, and retraction speed, all synchronized with the thermal cycle.
Phase 1: Counteracting Sag with Precision Height Control
The first step is to ensure the module is perfectly flat from the moment it enters the chamber. The PINs are programmed to lift the module sandwich to a precise, uniform height, creating a planar surface. This eliminates the initial 3mm sag, ensuring cells and interconnectors remain exactly where they were placed during layup.
Phase 2: Accommodating Thermal Expansion with Dynamic Timing
Here’s where the system becomes truly intelligent. Instead of holding the module rigidly, the PINs are programmed to adjust as it heats up. As the glass expands, the PINs make micro-adjustments to their support height, allowing the module to „breathe“ and expand naturally without building up internal forces.
This dynamic approach makes a staggering difference. Our data shows that dynamic PIN lift control that adjusts support height in response to thermal expansion can reduce internal stress by up to 60%. This directly mitigates the primary cause of microcracks that form during the lamination process.
Phase 3: Mitigating Shock with Staged Retraction
Finally, once the module is at temperature and the vacuum is pulled, the pins must retract to allow the top membrane to apply pressure. If they all drop at once, it creates a pressure shock, like dropping the module onto the bottom plate. This sudden impact can jolt the now-pliable components out of alignment.
To prevent this, we use a controlled, multi-stage retraction sequence. The pins begin by retracting slowly for the first few millimeters, gently transferring the load to the lamination membrane. Once the load is transferred, they retract more quickly to clear the area. This gentle handover is critical for maintaining the precise cell alignment required by high-efficiency TOPCon and HJT modules.
Why This Matters for Next-Generation Modules
In the past, smaller, thicker modules could tolerate a less precise lamination process. But the industry’s push toward larger formats, bifacial designs, and ultra-thin glass makes process control paramount.
„People often focus on temperature and pressure, but in large-format modules, mastering gravity and thermal expansion with the PINs is where process excellence is truly defined,“ notes Patrick Thoma, PV Process Specialist. „It’s the difference between a high-yield process and a high-risk gamble.“
Whether you’re developing a new lightweight G2G module or validating a new encapsulant, understanding these forces is non-negotiable. That’s why access to an environment built for advanced solar module prototyping is so critical. It allows developers to test these parameters on the same industrial-grade equipment found in turnkey solar production lines, bridging the gap between a great idea and a manufacturable product.
Your Questions on PIN Lift Control, Answered
What exactly is a PIN lift system in a laminator?
A PIN lift system is a grid of retractable pins built into the lower plate of a solar module laminator. Its primary job is to support the module assembly (glass, encapsulant, cells, backsheet) during the heating phase, before full pressure is applied, to prevent it from sagging.
Can’t you just use thicker glass to avoid sag?
While thicker glass is more rigid, it goes against the industry trend of creating lighter, more cost-effective, and higher-performance modules. Thinner glass reduces material costs and weight, which is crucial for applications like building-integrated PV (BIPV). The goal is to enable advanced materials through better process control, not to compensate with older, heavier materials.
Is this process only for G2G modules?
While the benefits are most pronounced for large, thin glass-to-glass modules, the principles of sag prevention and stress mitigation also apply to glass-backsheet modules, especially as they exceed 2 meters in length. Any large-format module benefits from precise PIN lift control.
How do I know if my lamination process has a sag or stress problem?
The signs can be subtle. Look for inconsistent cell spacing in the final laminate, higher-than-expected rates of microcracks detected during electroluminescence (EL) testing, or unexplained yield loss that cannot be traced to materials. These are often symptoms of uncontrolled mechanical and thermal stresses during lamination.
From Passive Support to Active Process Control
The PIN lift system is one of the most underappreciated components in the lamination chamber. By shifting your thinking from a passive support to an active control system, you can solve some of the most challenging problems in modern module manufacturing.
Controlling sag, managing thermal expansion, and ensuring a gentle load transfer are not minor tweaks—they are fundamental pillars of a stable, high-yield production process. As modules grow in size and complexity, mastering these details is what separates the market leaders from the rest.
